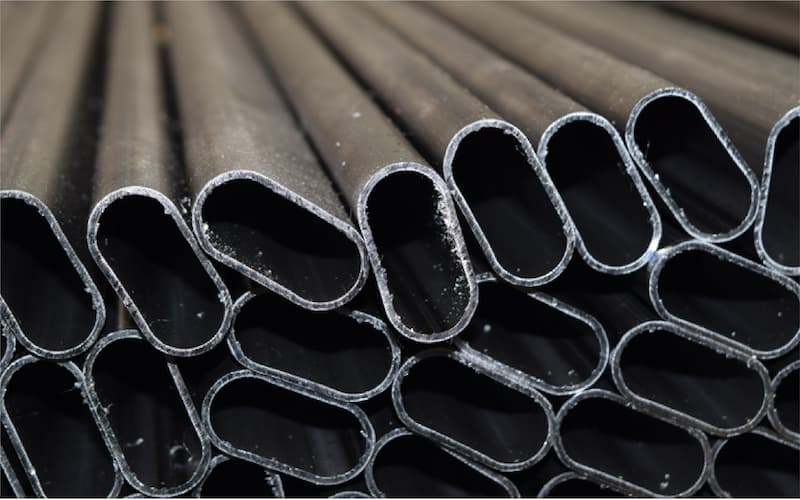

Oval Profiles

All square and rectangular section profiles, painted profiles, special section, oval, D profiles, and construction profiles manufactured in accordance with standards are packaged according to your needs and delivered to you either retail or wholesale.

OVAL PROFILES category includes all distinguished brands and products that comply with TSE, DIN, BS, ISO, and other standards and norms, provided by YAKUP YILMAZ BORU PROFİL A.Ş. with the most suitable prices and payment options.

Profiles used especially in construction and manufacturing sectors vary in their dimensions and weights according to width-height section (mm) and wall thickness (mm) values. According to the usage area and occupational health and safety standards, the most suitable profile section and wall thickness should be selected based on strength and static values.

Profiles are produced using the latest technology from pickled or cold-rolled bands in desired sheet qualities.

PRODUCTION DIMENSION RANGE:

Outer Section: 10x10 mm - 175x175 mm / 20x10 mm - 250x100 mm
Wall Thickness: 0.70 mm - 10.0 mm
Length: Standard length is 6 meters, and upon special request, deliveries can be made between 4 and 12 meters.

USAGE AREAS:

Building Elements (Construction Sector), Roof Constructions, Automotive and Automotive Sub-Industry, Bicycles, Furniture and Steel Goods, and Other Sectors...

PRODUCTION STANDARDS:

Compliant with EN 10305-5 (TS EN 10305-5), EN 10219 (TS EN 10219), CE MARKED, DIN 2395, DIN 59411, BS 6363, ASTM A 500, SI 1458, TS 5317 standards, and manufactured from DC01 (DIN EN 10130), S185, S235JRH/J0H/J2H, S275J0H/J2H, S355J0H/J2H (DIN EN 10025) quality steel bands by high-frequency welding (ERW).

TOLERANCES:

• Wall Thickness:

• ±12.5%, +10% (Varies based on net thickness order.)

• Weight:

±10% per pipe length according to standards

±7.5% for a 10-ton batch according to standards

• Length:

±50 mm

• Curvature:

2.5 mm/m

Operating in accordance with contracts and timely delivery principle, YAKUP YILMAZ BORU PROFİL A.Ş. offers price quotes for profiles used in a wide range of applications from construction sectors to steel construction applications and automotive parts, based on the latest price lists in the most economical and maximum discounted manner.

Special size orders for industrial pipes can be placed according to the intended usage area. For certain large quantity orders, production possibilities in the desired dimensions are evaluated. For painted, black, galvanized options, and stock status, you can always call our call center at 444 0 245 and get the best price options.
